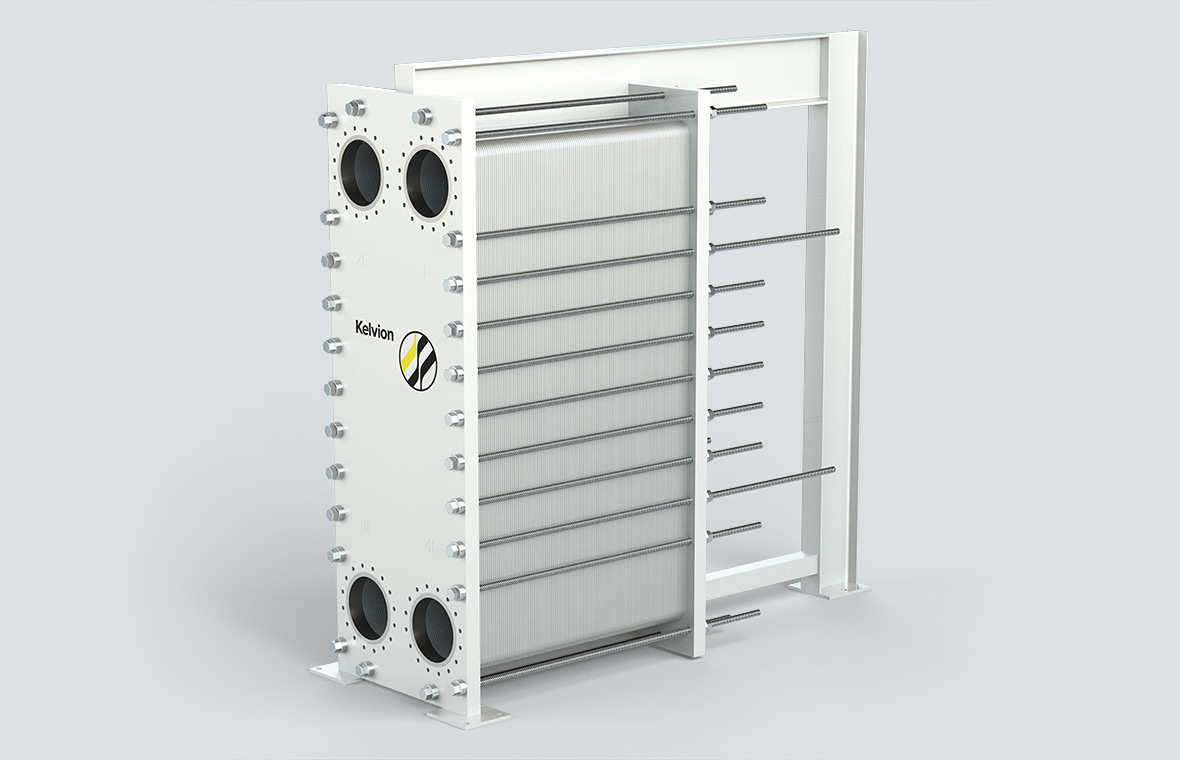

KELVION Plate Cooler, NT50X H, 14Pl., TITAN
Part no. 100050404
2000,00€*
*price excluding VAT
Plate heat exchanger with titanium plates for cooling the MGO, using seawater as cooling medium
Specifications
cooling 4,00 m³/h MGO (from 55,00 °C to 36,00 °C)
Cooling medium: seawater, 4,00 m³/h (from 34,00 °C to 41,72 °C)
Number of plates: 14
Plate material/Thickness: Titanium/0.5mm
Gasket material: NBR
Design Pressure Max (pri/sec): 10,00 / 10,00 barg
Design Temperature Max (pri/sec): 70,00/70,00°C
Weight: 166kg
Dimensions: 1390mm H x 323mm W x 490mm L
Cooling medium: seawater, 4,00 m³/h (from 34,00 °C to 41,72 °C)
Number of plates: 14
Plate material/Thickness: Titanium/0.5mm
Gasket material: NBR
Design Pressure Max (pri/sec): 10,00 / 10,00 barg
Design Temperature Max (pri/sec): 70,00/70,00°C
Weight: 166kg
Dimensions: 1390mm H x 323mm W x 490mm L
