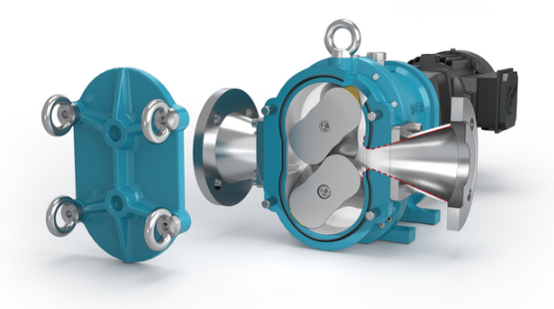

The BLUEline Nova AN 040 is a rotary lobe pump for pure or abrasive media. It delivers 0.03 to 20 m³/h at pressures up to 10 bar, with speeds from 1 to 800 rpm (max 200 °C). It is available in a "clean" version for non-abrasive fluids or a "tough" version with replaceable casing protection plates for abrasive media.
Specifications
|
Specification |
Value |
|
Min. Speed |
1 rpm |
|
Max. Speed |
800 rpm |
|
Min. Flow Rate |
0.03 m³/h |
|
Max. Flow Rate |
20 m³/h |
|
Max. Pressure |
10 bar |
|
Max. Temperature |
200 °C |
